Products Model
|
C60-C2B-5MP001I2WLFD-Cam
|
C60-C2B-5MP001I4GLFD-EU-Cam
|
|
|
Operating system
|
Embedded Linux OS
|
|
|
|
Effective pixels
|
5MP (2560*1920)
|
|
|
|
CMOS Sensor
|
1/2.7"
|
|
|
|
Lens interface type
|
M12
|
|
|
|
Lens
|
3.6mm Lens(4X Digital)
|
|
|
|
View angle
|
90°
|
|
|
|
Min.illumination
|
0.05 Lux / 0 Lux(IR on)
|
|
|
|
Day&Night mode
|
Auto IR-CUT
|
|
|
|

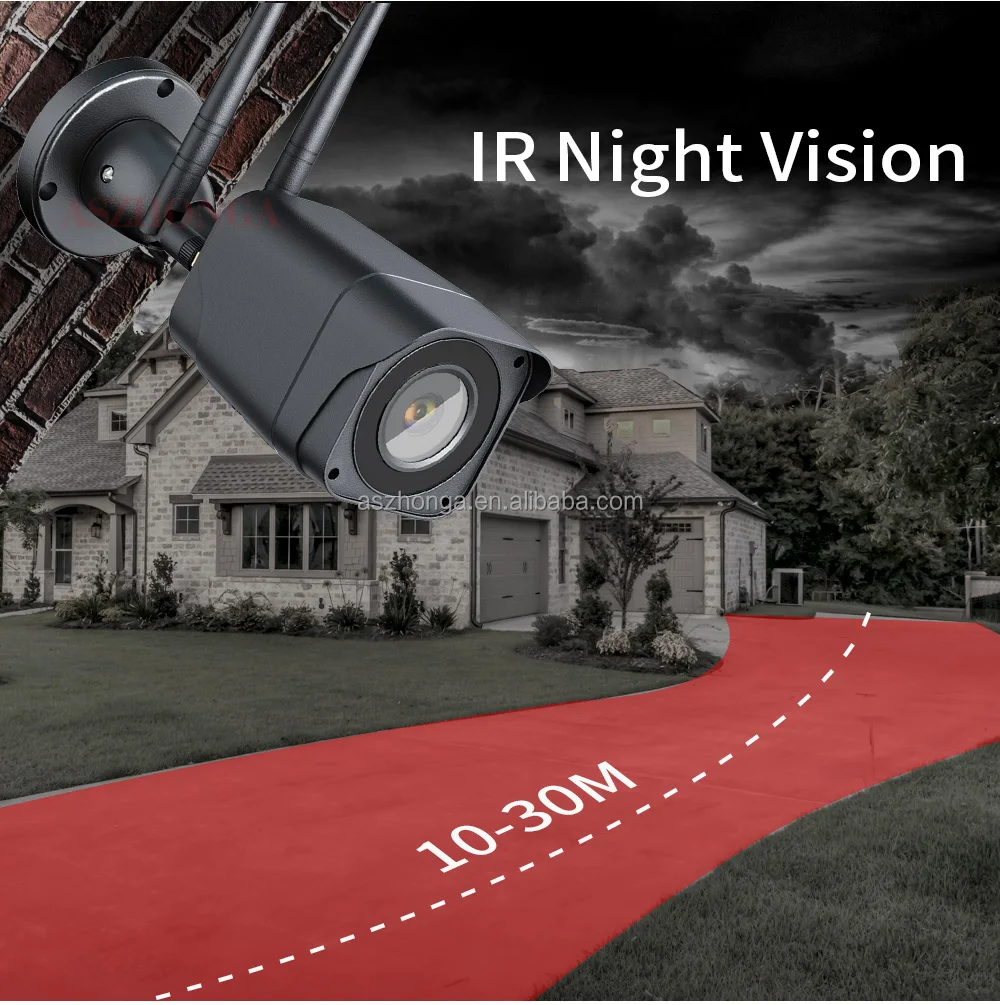

Night vision distance
|
10Pcs infrared Led light, 30M infrared detection range
|
|
|
|
Video compression Standard
|
H.265
|
|
|
|
Video streaming
|
Triple streaming
|
|
|
|
Video resolution
|
First stream: 2560*1920 Main Stream
|
|
|
|
|
Second stream:VGA
|
|
|
|
|
Triple stream :QVGA
|
|
|
|
Video code rate
|
32 to 8192Kbps. supports constant bitrate/variable bitrate
|
|
|
|
Video frame rate
|
15fps(PAL 50HZ/NTSC 60HZ)
|
|
|
|
Audio
|
Audio compression standard: G.726/G.711
|
|
|
|
|
Audio code rate: Rate adaptive
|
|
|
|
|
Audio Input: Support, built-in Microphone
|
|
|
|
|
Audio Output: Support Two Way Audio Talk Back(With Speaker)
|
|
|
|
Image settings
|
Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
|
|
|
|
Image enhancement
|
Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction
|
|
|
|
Audio function
|
Built in Audio Microphone, Support Two Way Audio Talk Back(With Speaker)
|
|
|
|
Motion detecting
|
Can set 4 independent detection region (1-100 sensitivity can be set)
|
|
|
|
Alarm linkage
|
Alarm send pictures to the specified mailbox,
|
|
|
|
|
alarm upload pictures and videos to the FTP server,
|
|
|
|
|
alarm write pictures and videos to Micro TF card, alarm message push
|
|
|
|
Privacy mask
|
Maximum support 4 users to simultaneously browse
|
|
|
|
OSD
|
Support camera name, date and time information superimposed
|
|
|
|
User management
|
Supports user and rights management
|
|
|
|
Simultaneous viewers
|
maximum support 12 users to simultaneously browse (each stream supports 4 users)
|
|
|
|
Network protocol
|
TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,
|
|
|
|
|
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
|
|
|
|
Connection protocol
|
ONVIF-Compatible 2.1Version (backward compatible)(4G Version not supported)
|
|
|
|
Network Support
|
2.4 GHz to 2.4835 GHz/IEEE802.11b.
802.11g. 802.11n Draft(4G Version not supported)
|
|
GSM 900/1800 MHz
UTRA FDD Band I/VIII
E-UTRA FDD Band 1/3/7/8/20/28
E-UTRA TDD Band 38/40/41
(WIFI Version not supported)
|
|
Wireless Security
|
64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS
|
|
|
|
Transmission rate
|
11b: 11Mbps,11g :54Mbps,11n :135Mbps
|
|
|
|
Power interface
|
1* DC φ2.1*5.5mm power interface
|
|
|
|
Ethernet
|
1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface (4G Version not supported)
|
|
|
|

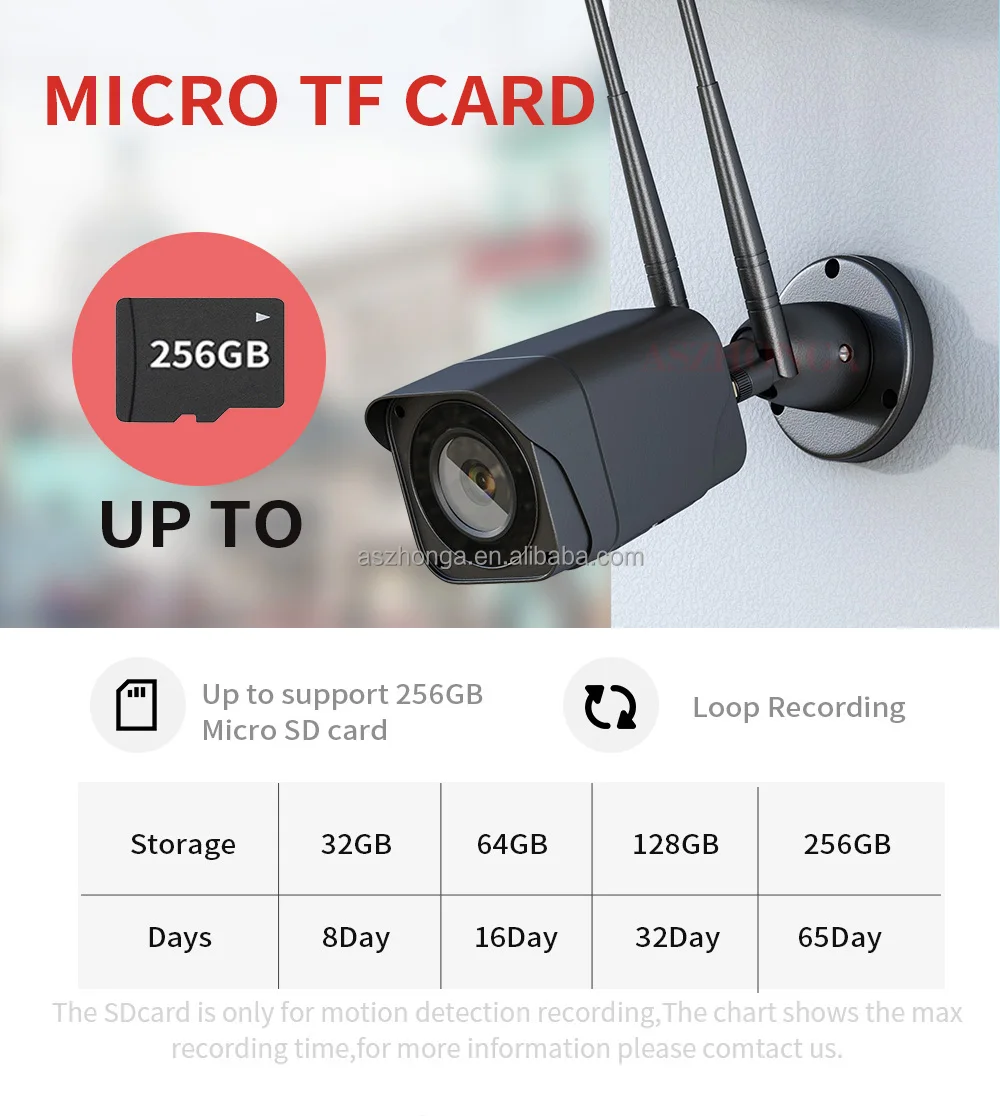

TF card Slot
|
1 * TF card slot. up to 256GB (NOT included TF Card)
|
|
|
|
Reset button
|
Support(On the side of the TF Card Slot)
|
|
|
|
Power supply
|
DC 12V 2A
|
|
|
|
power
|
Day: 3W; Night: 6W
|
|
|
|
Operating temperature
|
-20 to +60 ℃
|
|
|
|
Operating humidity
|
10% to 95%
|
|
|
|

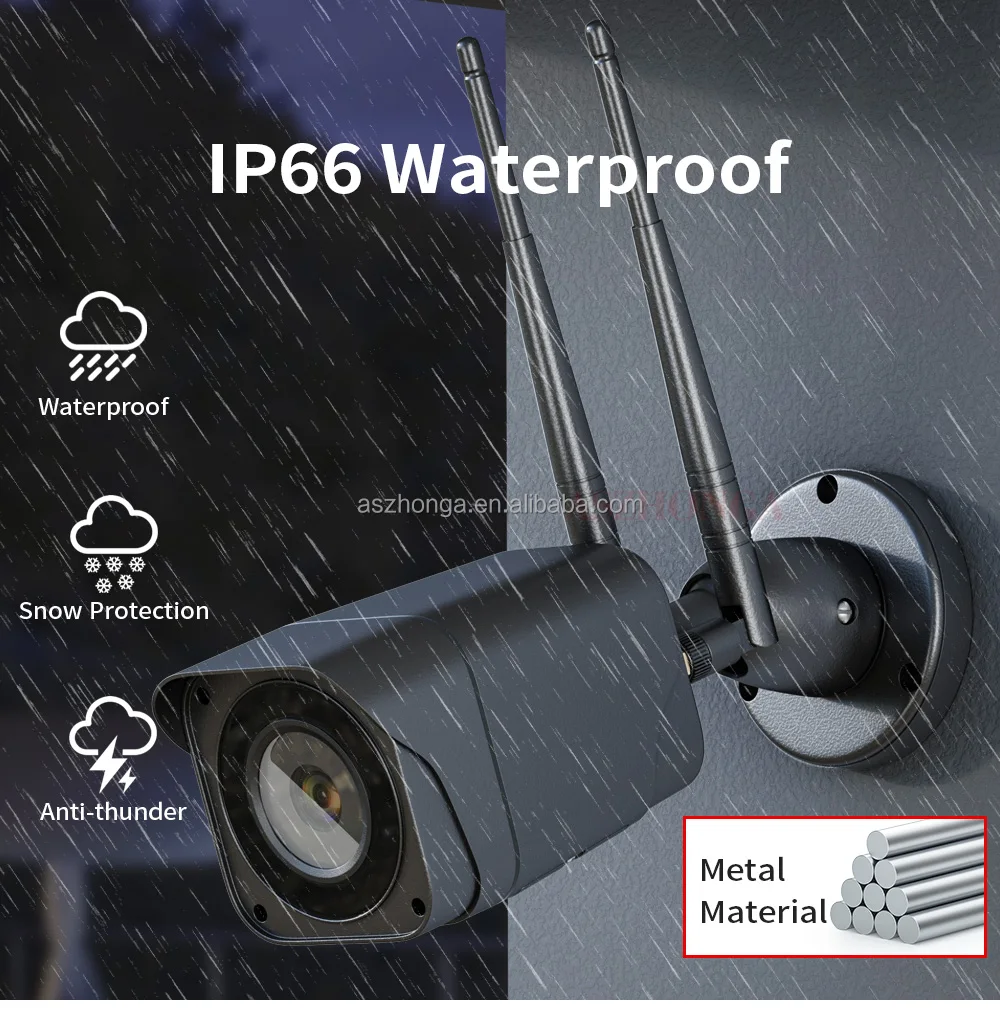

Material
|
Side Housing ,Outdoor Use,Waterproof IP66
|
|
|
|

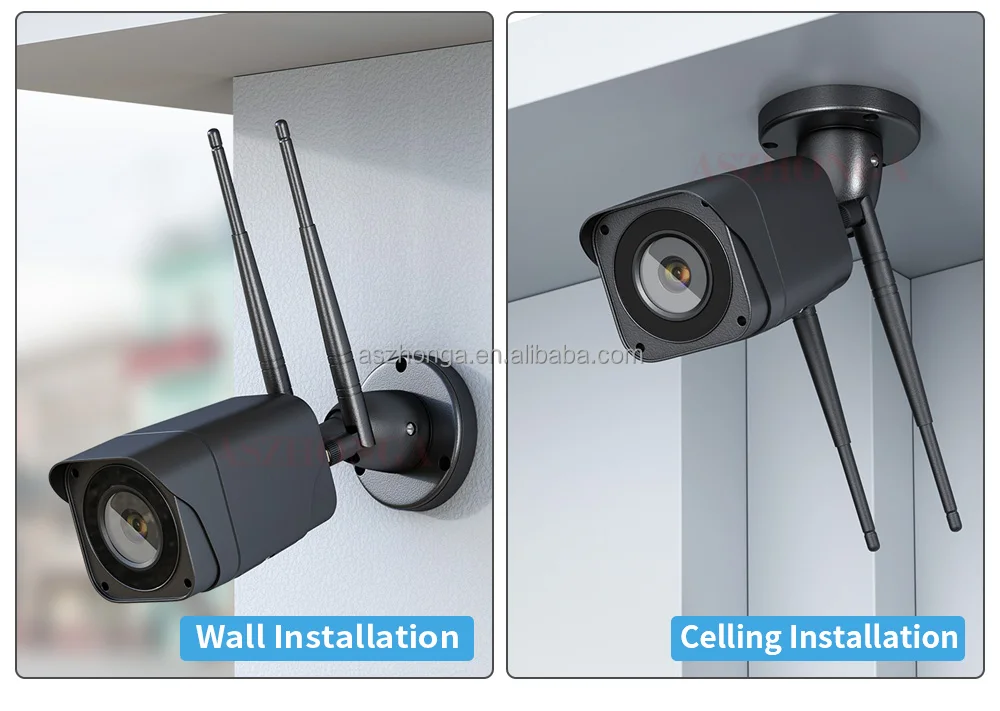

Installation
|
Wall mounting
|
|
|
|

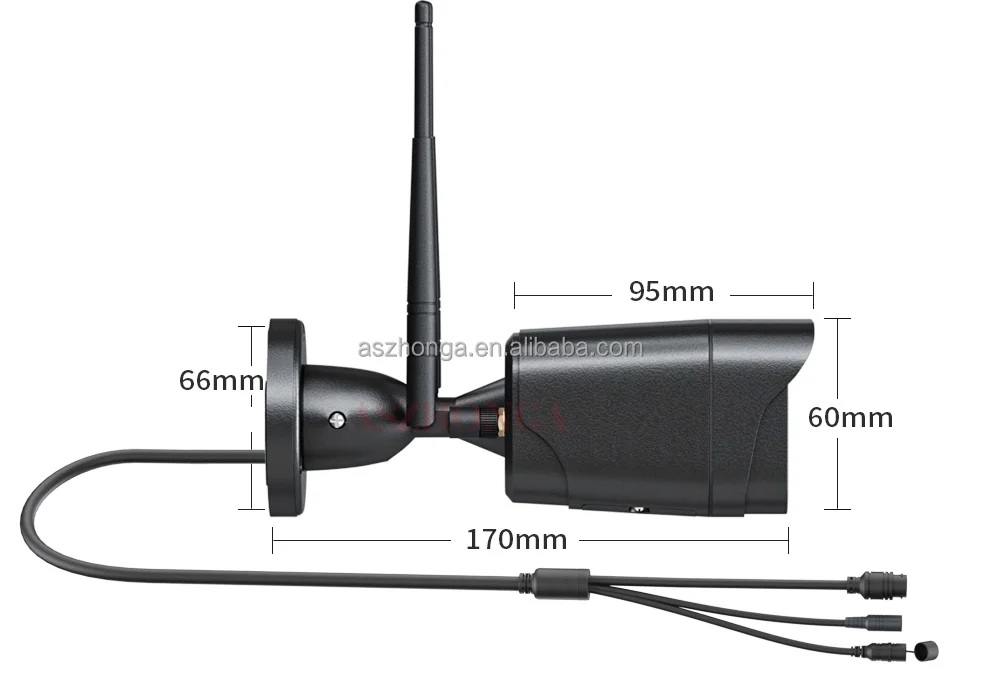

Size(mm)
|
170(mm)×Φ60(mm)×66(mm)
|
|
|
|
Weight(kg)
|
0.4kg
|
|
|
|
Package Size(mm)
|
195*106*103
|
|
|
|
Package Weight(kg)
|
0.6kg
|
|
|
